280mm corrugated roller Automatic Single Facer Line Hydraulic Drive YIKE GROUP

Name: 280mm corrugated roller Automatic Single Facer Line Hydraulic Drive YIKE GROUP
Brand: YIKE GROUP
Price: 1 USD

Quality 280mm corrugated roller Automatic Single Facer Line Hydraulic Drive YIKE GROUP wholesale

Brand Name : YIKE GROUP

Model Number : YK-1600 SINGLE FACER LINE

Certification : ISO,CE

Place of Origin : CHINA

MOQ : 1 Set Single Facer Line

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 Sets Per Month

Delivery Time : 30 Days After Deposit of Single Facer Line

Packaging Details : Plastic Film,FCL

diameter of corrugated roller : ￠280mm

diameter of glue rolle : ￠216mm

After-sales service provided : Engineers available to service machinery overseas,Video technical support,Field maintenance and repair service

Type : Packaging Line

Automatic grade : Automatic

Packaging type : Cartons,Case,Film

Contact Now

Automatic single facer line from China manufacturers

ZJ-V5B hydraulic shaftless mill roll stand

structural feature:

1. Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.

2. Brake adjustable adopts multipoint braking system.

Technical parameter

1. e range of clamping paper:MAX1600mm MIN1000mm

2. clamping diameters:MAX￠1500mm MIN￠350mm

3. main shaft diameter of paper holder:￠242mm

4. gas source work pressure(Mpa):0.4---0.8Mpa

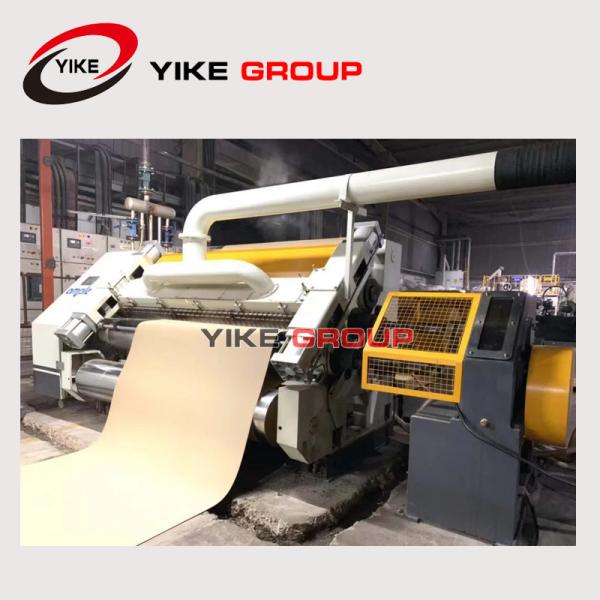

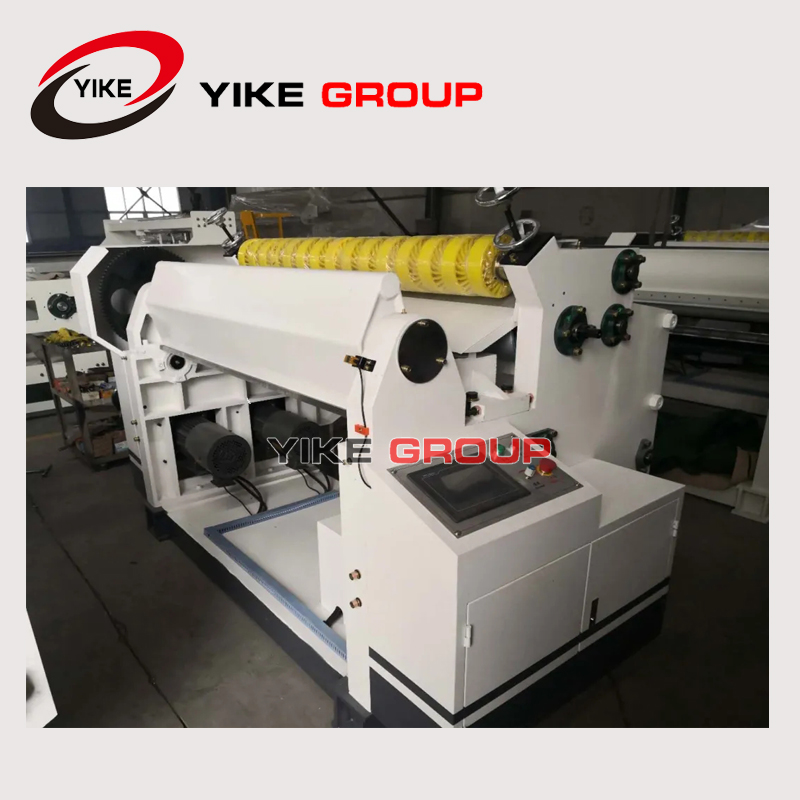

YK-280S fingerless type single facer(Steam heating)

Structural features:

1. Corrugated roller, pressure roller materials provided by the Central Plains Steel,High on corrugating unilateral 0.15mm, 0.075mm high pressure roller unilateral. Plus stopper. ¢ 160mm cylinder with compression cylinder.

2. preheat roll adopt seamless steel pipe production by tiangang ¢ 300mm,connecting with metal Hose.

regular technical parameters:

1. effective width:1600mm

2. operation direction:left or right(determined in accordance with customer plant)

3. design speed:100m/min working speed:60m/min

Rotary paper receiving machine:

1. the machine can achieve automatic points without stopping, automatic stacking, automatic sub-stacker.

2. the maximum stacking height of the local stacking unit is 100mm.

280mm corrugated roller Automatic Single Facer Line Hydraulic Drive YIKE GROUP
