Semi Automatic Corrugated Roller Electric Driven For 320F Single Facer

Name: Semi Automatic Corrugated Roller Electric Driven For 320F Single Facer
Brand: YIKE GROUP
Price: 1 USD

Brand Name : YIKE GROUP

Model Number : Hard Chrome Type ,Tungsten Carbide Type

Certification : ISO,CE

Place of Origin : CHINA

MOQ : 2 Set Corrugated Roller

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50 Sets Per Month

Delivery Time : 30 Days After Deposit Of Corrugated Roller

Packaging Details : Plastic Film,FCL

Voltage : according to your request

Condition : New Corrugated Roller

Type : Packaging Line

Automatic grade : Semi-Automatic

Driven type : Electric

Dimension(l*w*h) : according to customer request

Packaging type : Bags

Packaging material : Paper,Wood

Contact Now

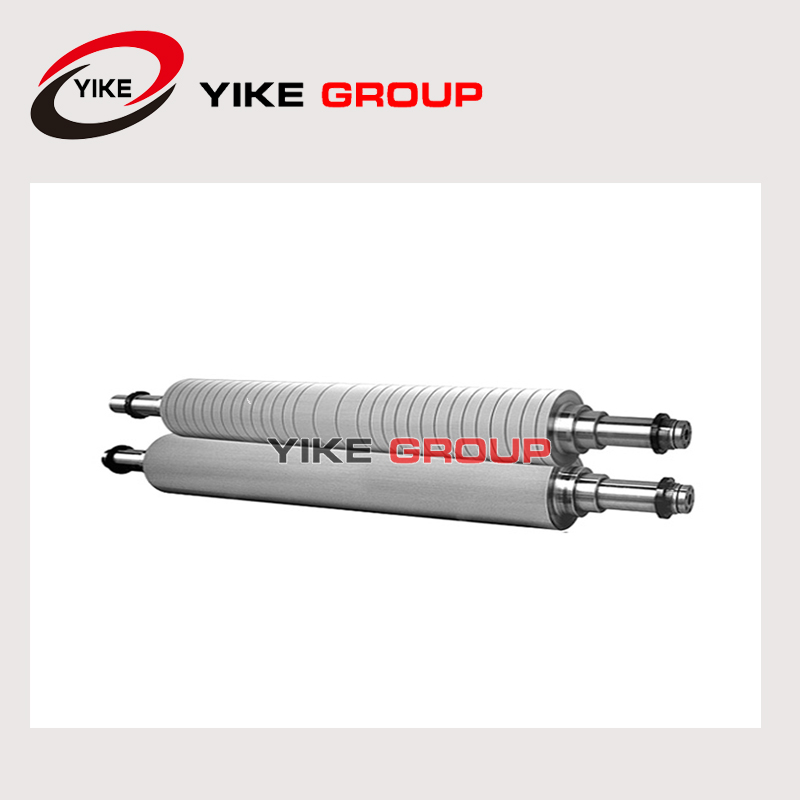

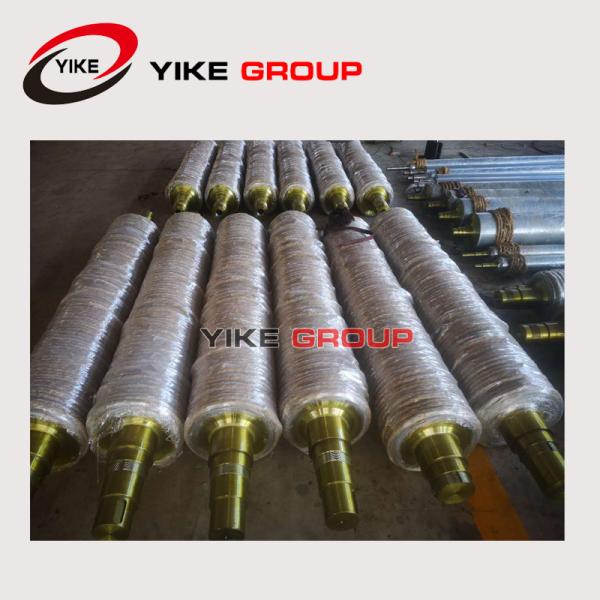

Corrugated Roller for 320F Single Facer

Description

1. Hard Chrome Type Corrugated Roller

● Made of 48 CrMo alloy steel or tungsten carbide with hard treatment by laser,the hardness is above HRC58o-60o

● The surface is well treated by grind and plated chrome.

2. Tungsten Carbide Type Corrugated Roller

● Tungsten Carbide technology is best surface treatment of Corugated roll

● With Tungsten Carbide coat on the surface of flute, make the corrugated roller with high wearability. The lifetime of Corrugated Roller become more Longer lifetime.

Characteristics

Flute	A	C	BC	B	D	E	F	G
Profile	UV	UV	UV	UV	UV	UV	UV	UV
Counts(300mm)	34±2	36±2	44±2	50±2	66±3	96±4	124±10	185±12
Height	4.6-4.9	3.6-3.9	3.0-3.4	2.6-2.9	1.9-2.1	1.1-1.8	0.7-0.8	0.5-0.65
Take Up Rate	1.51-1.59	1.44-1.51	1.42-1.49	1.36-1.42	1.40-1.41	1.29-1.39	1.22-1.26	1.20-1.25

Semi Automatic Corrugated Roller Electric Driven For 320F Single Facer
