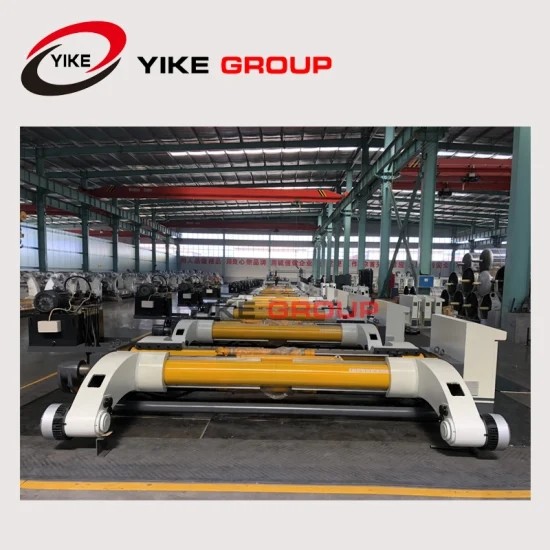

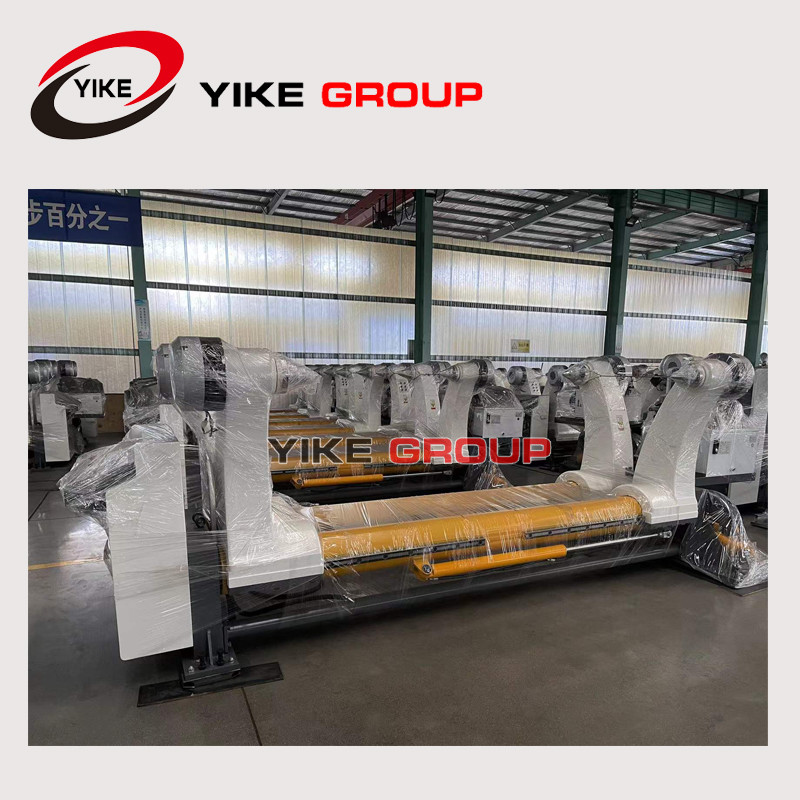

1400 - 1800MM Width Reel Paper Shaftless Hydraulic Mill Roll Stand For 3 5 7 Layer Paperboard Production Line

Name: 1400 1800MM Width Reel Paper Shaftless Hydraulic Mill Roll Stand For 3 5 7 Layer Paperboard Production Line
Brand: YIKE GROUP
Price: 1 USD

Brand Name : YIKE GROUP

Model Number : YK-V5

Certification : ISO,CE

Place of Origin : CHINA

MOQ : 1 Set Mill Roll Stand

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50 Sets Per Month

Delivery Time : 30 Days After Deposit of Mill Roll Stand

Packaging Details : Plastic Film,FCL

Voltage : 380V/50HZ, 220v/380v/440v

After-sales Service Provided : Engineers Available To Service Machinery Overseas,Online Support

Automatic Grade : Fully Automatic Hydraulic Mill Roll Stand

Usage : 3&5&7 Ply High Speed Corrugated Cardboard Production Line

Warranty : 1 Year

Packaging Type : Plastic Film

Contact Now

1400 - 1800 Mm Width Reel Paper Shaftless Hydraulic Mill Roll Stand For 3 5 7 Layer Paperboard Production Line

technical parameters:

1,the range of clamping paper:MAX1800mm MIN1000mm

2,clamping diameters:MAX￠1500mm MIN￠350mm

3,main shaft diameter of paper holder:￠240mm

4,gas source work pressure(Mpa):0.4---0.8Mpa

Hydraulic system parameters:

1.Work pressure(Mpa):16---18Mpa

2,lifting hydraulic cylinder:￠100×440mm

3.Clamping hydraulic cylinder:￠63×1300m

4,hydraulic station motor power:3KW --380V -- 50Hz

5,solenoid valve voltage:220V 50 Hz

Mainly purchased parts, raw materials and origin:

Name of main parts	Brands or place of origin	material
Main shaft	Day steel production	diameter242mm
Swing arm	Production by own	Resin sand gray ironHT200
wallboard	Jigang prduction	Q235AWelding parts
bearing	HRB,ZWZ,LYC
Toothed chuck	Zhejiang xusheng	3,4inch shared
Main electrical appliance	France Schneider
button	CHINT NP2series
Air switch	French Schneider
Pneumatic components	Zhejiang Sonor CSM
Hydraulic station	Shandong zaozhuang
Brake pump	zhejiang

1400 - 1800MM Width Reel Paper Shaftless Hydraulic Mill Roll Stand For 3 5 7 Layer Paperboard Production Line
