Corrugated Cardboard Production Line Cassette Type Single Facer Machine

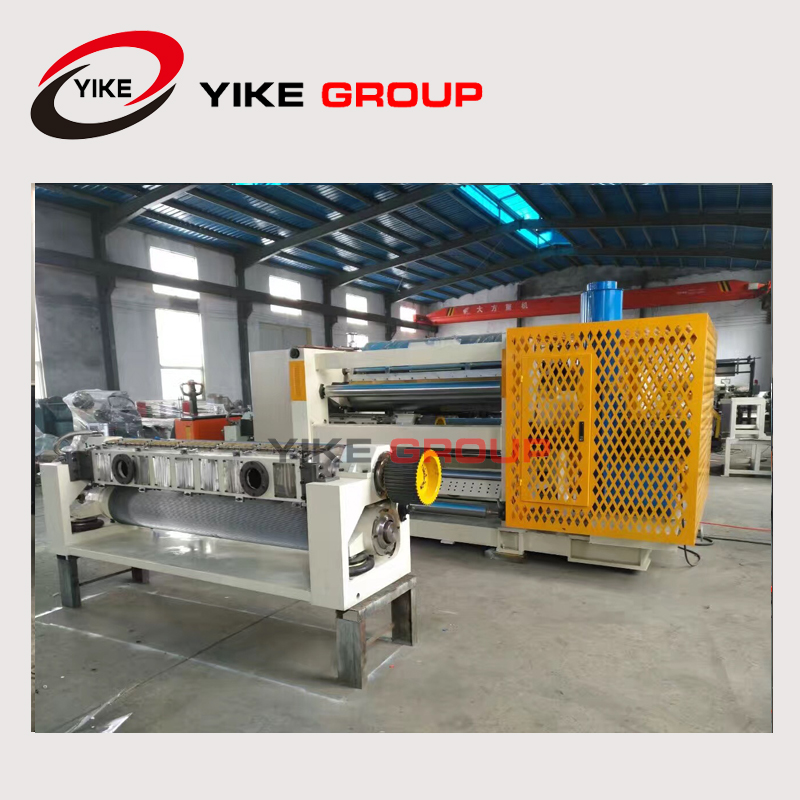

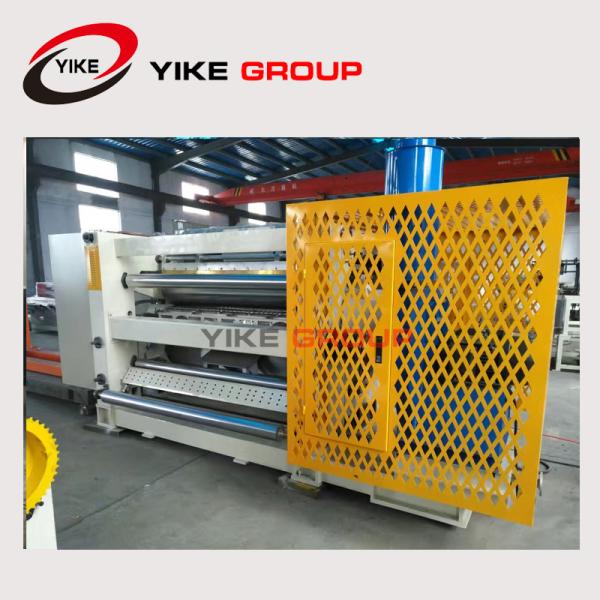

YK-320E 2200 multi-cassette positive pressure single facer
※Structural features
★Main flute roller:￠320mm(according flute differs ),pressure roller￠370mm,preheat roller￠400mm.
★Using negative pressure type design, low heat loss,helps the core paper to press evenly and close to the surface of the corrugated roller.
★Corrugated roll adopts 48CRMO high-quality alloy steel, dealing with heating, after grinding hard chrome plating surface treatment.
★Corrugated roll and pressure roll adopts the airbag control system with high stability, at the same time with pneumatic control buffer effect.
| Specification | Equipment name | UNIT | Remark |
| YK-320E | Cassette type single facer machine | a | Corrugated roller ¢ 320mm, Tungsten carbide coating, electric trailer 10-minute rapid change of tile roller, energy-efficient synchronous belt rotation, maintenance-free airbag pressurization, independent coating unit, PLC automatic control plastic, man-machine interface touch screen, Paper automatic parking pressure relief. |
| MK－320 | Corrugated Roll Quick Change modules | a | Corrugated roller diameter:320mm,tungsten carbide dealing,Modules section comprises Both ends of the shaft seat,bearing,steam element,suction box,pneumatic components assembly. |
| DY-C | Electric hydraulic quickly change trolley | a | Large capacity battery, power walking, hydraulic lift, centralized control. |
※Technical parameters
1,effective width:2200mm
2,operation direction: left or right(Determined in accordance with the customer's facility)
3,design speed:150m/min
4,temperature range:160—200℃
5,air source:0.4—0.9Mpa
6,steam pressure:0.8—1.3Mpa
7,corrugated flute:(UV type or UVV type)
※Roller diameter parameters
1,diameter of up corrugated roller: ￠320mm 2,diameter of pressure roller:￠269m
3,diameter of glue roller:￠268mm 4,diameter doctor roller:￠153mm
5,diameter of preheater:￠400mm
